RDF (Resource Description Framework) Module¶

This module provides a comprehensive framework for parsing, analyzing, and rendering RDF (Resource Description Framework) schemas and instances, with a focus on the Common Information Model (CIM) and related standards. It enables the transformation of RDF-based ontologies into strongly-typed C#, Java(experimental) and Python(experimental) classes and enumerations, supporting advanced code generation and schema management scenarios.

It is easily extendable to support new RDF vocabularies, code generation templates, or schema analysis strategies.

User Interface¶

This module doesn't provides UI.

Features¶

• RDF Schema Parsing

  • Extracts namespaces, headers, classes, attributes, data types, enumerations, and concrete classes from RDF/XML files.
  • Supports detailed introspection of RDF graphs using the dotNetRDF library.

• Schema Analysis

  • Analyzes RDF classes, attributes, and data types to determine their render requirements and C#, Java(experimental) and Python(experimental) type mappings.
  • Distinguishes between primitive types, references, enumerations, and concrete classes.

• RDF Instance Parsing (CIM/XML)

  • Parses RDF instances (CIM/XML content) and attaches them to the top-level RdfSchema via RdfFullModel or RdfModel.
  • Supports literal, resource, and compound properties: RdfLiteralProperty, RdfResourceProperty, RdfCompoundProperty, RdfCompoundElement.
  • Provides document-level wrappers: CIMXMLDocument and RdfStatements.
  • Enables building RdfDifferenceModel to compare two instance models.

• Code Generation

  • Renders C#, Java(experimental) and Python(experimental) classes and enumerations from RDF schema definitions using Scriban templates.
  • Supports extensible and customizable code generation pipelines.

• Schema Management

• Provides a domain service for loading, updating, and managing RDF schema representations.
• Enables updating of schema elements (classes, attributes, data types, enumerations) in a consistent and type-safe manner.
• Supports resolving CIM versions via ICimSchemaResolver and CimSchemaResolverOptions.

Options¶

RdfSchemaAnalyzerOptions¶

RdfSchemaAnalyzerOptions can be configured in the application layer, within the ConfigureServices method of your module. Example:

Configure<RdfSchemaAnalyzerOptions>(options =>
{
    // Set options here...
});

Options for configuring the RDF Schema Analyzer.

RdfSchemaParserOptions¶

RdfSchemaParserOptions can be configured in the application layer, within the ConfigureServices method of your module. Example:

Configure<RdfSchemaParserOptions>(options =>
{
    // Set options here...
});

Options for configuring the RDF Schema Parser.

RdfInstanceParserOptions¶

RdfInstanceParserOptions configures CIM/XML instance parsing and model building.

Configure<RdfInstanceParserOptions>(options =>
{
    // Set options here...
});

TemplateRendererOptions¶

TemplateRendererOptions can be configured in the application layer, within the ConfigureServices method of your module. Example:

Configure<TemplateRendererOptions>(options =>
{
    // Set options here...
});

Options for configuring the Template Renderer.

Model Generator Tool¶

The ModelGenerator is a command-line tool for generating code from RDF schema files (such as CGMES or CIM). It supports multiple target languages (CSharp, Java, Python) and is highly configurable via command-line options. The tool can be run directly or as a Docker container.

Usage¶

1. Running Locally

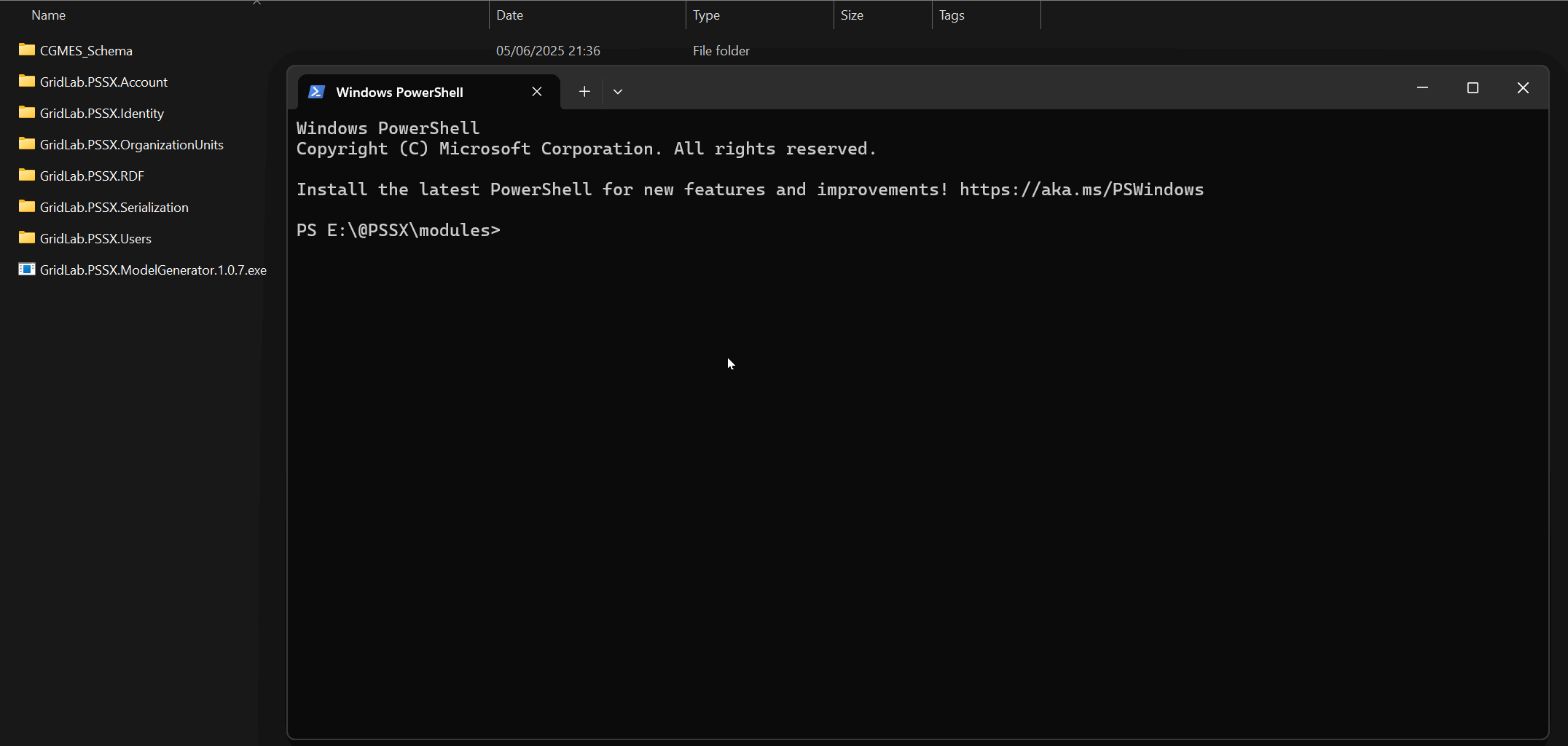

   You can run the tool directly from the command line after building the project:

   dotnet run --project host/GridLab.GMSS.ModelGenerator -- [OPTIONS]


   Or, if you have a published executable:

   GridLab.GMSS.ModelGenerator.exe [OPTIONS]




   Common Options:

   Option	Description
   -i, --input	Directory containing RDF files
   -p, --rdfFilePattern	File pattern to search for RDF files (default: *.rdf)
   -f, --inputFile	Single RDF file to process
   -o, --output	Output directory (defaults to executable location)
   -m, --mergeSchemas	Merge all schemas and their attributes
   --profileName	Name of the profile for generated classes (if schemas are merged)
   --version	Version for generated classes (if schemas are merged)
   --namespace	Namespace for generated classes (if schemas are merged)
   --overwriteFiles	Overwrite existing files in the output directory
   --classTemplatePath	Path to custom Scriban template for classes
   --enumerationTemplatePath	Path to custom Scriban template for enumerations
   -l, --language	Target language: CSharp, Java, Python
   -w, --logWarnings	Log warnings for missing/malformed schema elements
   -d, --includeDeprecated	Include deprecated classes/properties
   --namespaces	Allowed namespace prefixes (comma-separated)
   --allowedClassNames	Allowed class names (comma-separated)
   --allowedAttributeNames	Allowed attribute names (comma-separated)
   --allowedEnumerationNames	Allowed enumeration names (comma-separated)
   --ignoreUnknownTypes	Ignore unknown/unsupported RDF types instead of throwing
   --inferLabels	Infer missing labels from URIs
   --normalizeLiterals	Normalize literal values
   --throwOnUnknownTypes	Treat unknown/unsupported types as errors
   --inferPropertyTypes	Infer missing property types from context
   --normalizeNames	Normalize property/class names (e.g., PascalCase, SnakeCase)
   --reservedKeywordSuffix	Suffix to append to reserved keywords
   --includeAutoGeneratedComment	Include an auto-generated comment in generated files

   To see all options and their descriptions, run:

   GridLab.GMSS.ModelGenerator.exe --help


2. Running as a Docker Image

   A Docker image is provided for easy execution in containerized environments.

   Build the Docker Image:

   Use build\build-images-locally.ps1 powershell script.

   Example:

   Mount your RDF schema directory and specify output as needed:

   docker run --rm \
     -v /path/to/your/rdf:/app/CGMES_Schema \
     -v /path/to/output:/app/models \
     gridlab.gmss.modelgenerator/application \
     --input /app/CGMES_Schema/CGMES_3.0.0 \
     --output /app/models \
     --language CSharp \
     --mergeSchemas true \
     --profileName IEC61970 \
     --namespace Profiles.IEC61970 \
     --version 3.0.0


3. Replace /path/to/your/rdf with the path to your RDF files on your host.

4. Replace /path/to/output with the desired output directory on your host.
